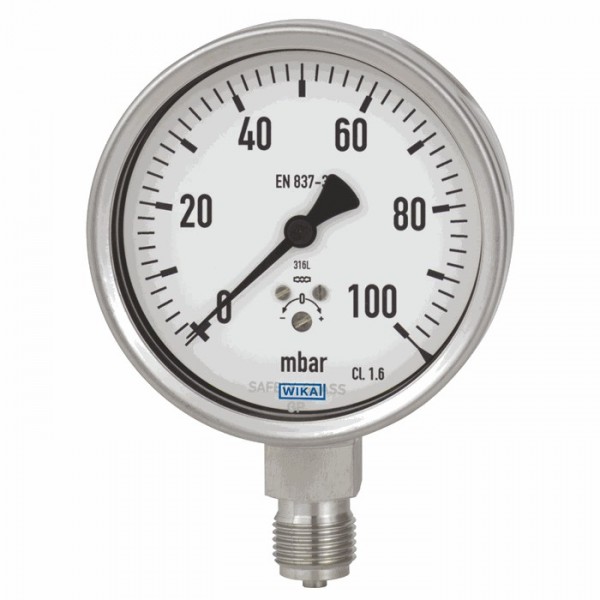

Wika Models 632.50, 633.50 Capsule pressure gauge, stainless steel Maximize

Wika Models 632.50, 633.50 Capsule pressure gauge, stainless steel

» Add to my wishlist

30 other products in the same category:

Models 632.50, 633.50

Capsule pressure gauge, stainless steel

Applications

  • With liquid filled case for applications with high dynamic pressure pulsations or vibrations
  • For gaseous, dry and aggressive media, also in aggressive ambience
  • Process industry: chemical/petro-chemical, pharmaceutical, biotechnology, machine and power generation industries

Special Features

  • Zero adjustment in front
  • All stainless steel construction
  • Special connection location on request
  • Low scale ranges from 0 ... 2.5 mbar

Description

Design
EN 837-3

Nominal size in mm
63, 100, 160

Accuracy class
1.6

Scale ranges
NS 63: 0 ... 40 mbar to 0 ... 600 mbar
NS 100: 0 ... 16 mbar to 0 ... 600 mbar
NS 160: 0 ... 2.5 mbar to 0 ... 600 mbar
or all other equivalent vacuum or combined pressure and vacuum ranges

Pressure limitation
Steady: Full scale value
Fluctuating: 0.9 x full scale value

Permissible temperature
Ambient: -20 … +60 °C
Medium: +100 °C maximum

Temperature effect
When the temperature of the measuring system deviates from the reference temperature (+20 °C): max. ±0.6 %/10 K of full scale value

Ingress protection per IEC/EN 60529
IP54 for model 632.50 (without liquid filling)
IP65 for model 633.50 (with liquid filling)
