Models 100.0x, 100.1x

Thermomanometer

Applications

Heating systems
Combi-boilers with hot water and heating

Special features

Combined indication for pressure and temperature

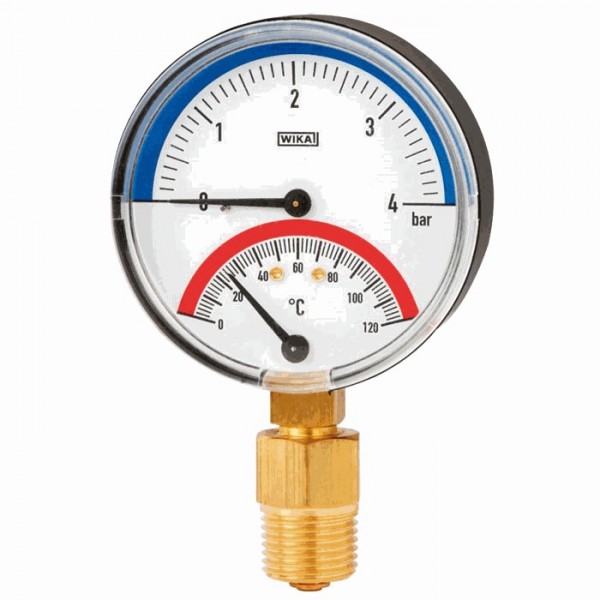

Model 100.01: At the top pressure, at the bottom temperature, temperature scale bent downward
Model 100.02: At the top pressure, at the bottom temperature
Models 100.10 and 100.12: At the top temperature, at the bottom pressure
Scale ranges to 0 … 16 bar, 0 ... 150 °C

Description

The thermomanometer with bimetal system is fitted directly at the measuring point via a stem. The valve allows the measuring instrument to be unscrewed without having to empty the heating system first. Due to the combination of a pressure gauge and a bimetal thermometer the instrument can be used flexibly in a wide variety of applications.

Nominal size in mm
63, 80

Accuracy class

Pressure: 2.5 (EN 837-1)
Temperature: ±2.5 °C

Scale ranges

Pressure: 0 ... 1 to 0 ... 16 bar
Temperature: 0 ... 100 to 0 ... 150 °C

Working ranges

Pressure:         Steady:         3/4 x full scale value
                       Fluctuating:   2/3 x full scale value
                       Short time:    Full scale value
Temperature: Full scale value

Measuring elements
