Explanation;

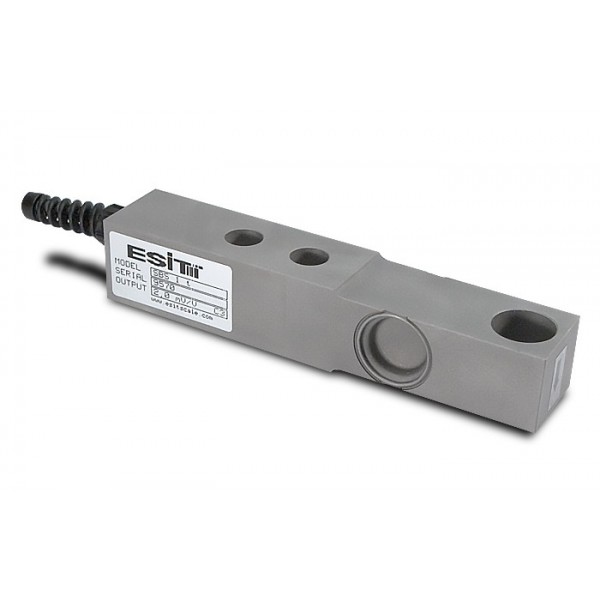

The SBS shear beam load cell has been developed for use in electronic weight and force measurement applications under industrial conditions. The excellent linearity and reliability of the SBS is enhanced by thermal compensation for the effects of temperature on zero and span stability.

Having a thin profile which is fully resistant to side forces, the SBS shear beam load cell is suitable for low and medium capacity platform scales, tank weighing systems, automatic weighing equipment and process weighing applications. The strain gauge area is welded in accordance with IP68 standards. Thanks to its stainless steel structure, which provides resistance to water and other chemicals, the product is an ideal solution for such industries as chemicals, petrochemicals, caustic soda and fertilizers.

Features;

• Stainless steel
• Easy-to-mount
• Certified to OIML R60 standards
• IP68 industrial protection
• Hermetic-sealed strain gauge area
• Resistant to side forces
• Low profile body

Accessories;

J Box Connection Box
