Overview;

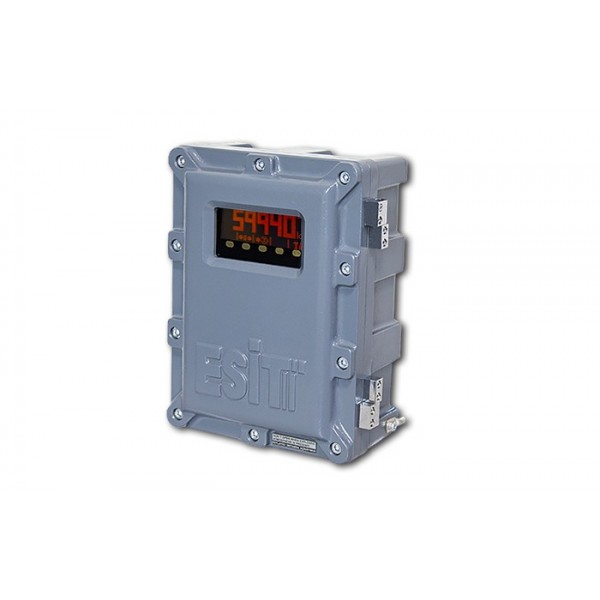

Esit ECI-EX is a indicator that is used in explosion risk areas such as environments of combustible chemicals, gas or petroleum products.
ECI-EX boxes have power supply, ECI and zener barrier. It  gathers the electrical signal from load cells and transmit them to the indicators through zener barriers using for protection.

Features;

• Multi-language support
• 5 touch keys
• Plain use and setting thanks to the indexed menu system structure
• Internal batching and filling program
• Smart “plug and play” expansion structure
• Gain setting adjustable according to the sensor output(capable of reading between ±20mV and ±1.6V)
• Connectivity up to 10 load cells (350R)
• Software update by using USB
• Calibration without installation on the basis of the load cell data
• Facility to carry the calibration information between different devices.
• Easy test opportunity with the service menus (Serial Output, Digital inputs/Outputs, LCD, memory, ADC input)
• 3 sectional weighing range (Wide Range , Multi Partition options)
• Automatic scale interval (e) and dot space adjustment
• gResolver, Smart numerical filter technology
• Storing current weighing device values and calibration info
• Monitoring the Load Cell info real time as mV/V from the service menu
• 96 recipe and double speed batching up to 8 silos
• Up to 8 optional digital output and up to 8 digital input
• USB reporting (Last 64 calibration log, Last 256 Error Record and Last 256 Overload log)
