Explanation;

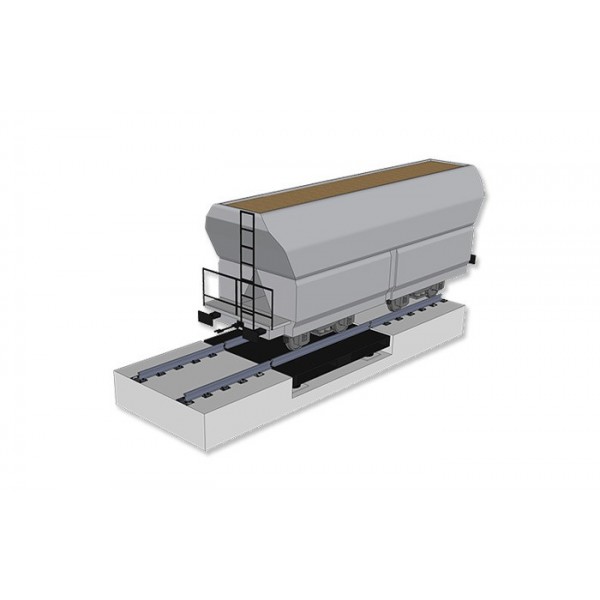

ESİT-DR-B Dynamic Railway Vagon scales are automatic weighing instruments which can take measurements without separating vagons from the train. The total weight of vagons and the train combination is determined by evaluating the weights of each axles by using ESİT-DR Dynamic Railway Vagon scales which are especially used for weighing load carrying trains. They save a significant amount of time and labour cost.

ESİT-DR-B Dynamic Railway Vagon scales are constructed to an appropriate segment of railway in the loading-unloading train stations. Train that is to be weighed, is passed through the scale with a specific constant velocity. Measures the axle weights of the train in motion and sends the data to PC which is connected to the system. The PC calculates the velocity, vagon weights and the total weight of train by evaluating these data. It determines the net weights by weighing twice or by the tare informations entered before. Then prints the desired information.

Features;

• rubber footings
• lightning protection
• steel cable coverings
• protected structure against outdoor weather conditions
• strong against overloads and damped loads
• easy and fast assembling
• classification of vagons
• entering brief information about train combination
• Constant tare record
• possibility of adding 3 extra columns
• displaying the axle weights and mean velocity of train while passing
• possibility to place the emblem of the firm on the documents
• Adding, cancelling and authorizing users
• Printing and displaying the weighing records in the desired time interva
• Reporting by company information, date, vagon number,train direction and material
• row and column based easy record entering table
• Option : Entering the vagon number by viewing the pictures of vagon during recording
• %0.5 sensibility for total train weight
• %1 sensibility for single vagon weight
• 2 km/h Minimum measurable vehicle velocity
• 20 km/h Maximum measurable vehicle velocity

Accessories;

  PWI X,Indicator

Options;

• Automatic vehicle recognition system
• Printer
• Ex Proof scale
• Camera System
